Armstrong Design Envelope Compass R Circulators

Armstrong Design Envelope Compass R Circulators

Price range: $581.35 through $3,575.55

View all product options
OR

SKU: 119981-113-MAIN Category:
SKUModelPriceStockBuy
180203-687Compass H 20-20$581.35

4 in stock

119281-313Compass R 25-140$3,575.55

2 in stock

119381-113Compass R 40-45$1,982.75

4 in stock

119981-113Compass R 20-35$1,408.00

6 in stock

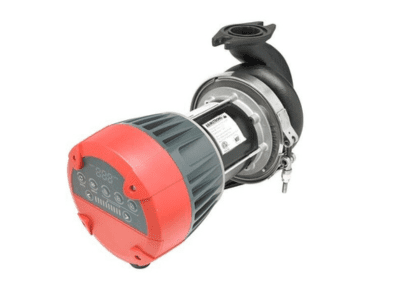

The Armstrong Compass R is an energy-efficient variable speed dry-rotor circulator. Designed to replace existing fixed speed circulators, with popular flange-to-flange dimensions, Compass R can be considered a universal replacement for all circulators in its capacity range.

Features & Benefits

  • Wide performance range
  • Large wiring chamber and front-mounted terminal block for much easier and faster installation compared to any other circulator currently available
  • Easy and quick setup of energy-saving features: eight operation modes with patented “Auto” algorithm, 3 Sensorless modes, 4 constant pressure modes and 3 fixed speed modes
  • Design Envelope Intelligent Variable Speed technology, combined with ECM motors, saves up to 70% in operating cost over fixed speed circulators
  • Performance range: 0 to 140 USgpm (8.8 L/s) flow; 0 to 40 ft (12.2 m) head
  • Temperature: Max ambient temp. 40°C; max water temp. 110°C
  • Power range: 1/6 hp and 1/2 hp
  • Size: 2 and 4 bolt

Learn more about Armstrong

Weight N/A
Model

Compass R 20-35, Compass R 25-140, Compass R 40-45, Compass H 20-20
