Garlock Style WS Steel Pipe Sleeves for Wall Penetrations

$211.00$1,090.00

View all product options

Note: To ensure correct sizing, please refer to the LINKSEAL Modular Seal Sizing Charts before finalizing your order.

OR
Clear
SKU: WS-2-21-S-12-MAIN

SKUModelPriceStockBuy
WS-10-36-S-12WS-10-36-S$211.00

Out of Stock - Contact us for information on restocking

WS-12-37-S-12WS-12-37-S$1,090.00

Only 1 left in stock

WS-16-37-S-12WS-16-37-S$503.00

Out of Stock - Contact us for information on restocking

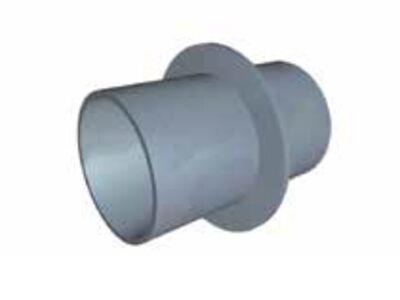

WS Steel Pipe Sleeves are made from welded or seamless pipe. A full circle water-stop plate acts as positive water seal and anchor to prevent thrust movement.

WS steel pipe sleeves are available for all pipes passing through concrete or masonry structures.

An excellent choice for installations where the LINK-SEAL® Modular Seal and WS Sleeve assembly would be subject to extremely high temperatures or where fire seals are specified.

Features & Benefits:

  • Steel Wall Sleeves available in Painted (Model WS) or Galvanized (Model WSG)
  • 2” (50.8 mm) Steel Collar (water-stop)
  • Continuous Weld-Bead on both sides of collar (water-stop)

Learn more about Garlock

Weight N/A
Model

WS-2-21-S, WS-2-15-S, WS-2-1/2-20-S, WS-3-30-S, WS-3-21-S, WS-3-1/2-22-S, WS-4-23-S, WS-5-25-S, WS-6-28-S, WS-6-18-S, WS-8-32-S, WS-8-18-S, WS-10-36-S, WS-10-25-S, WS-12-37-S, WS-14-37-S, WS-16-37-S, WS-18-37-S, WS-20-37-S, WS-22-37-S, WS-24-37-S

Sleeve I.D. (inches)

1.94, 2.07, 2.47, 2.9, 3.07, 3.55, 4.03, 5.05, 6.07, 6.25, 7.98, 8.25, 10.02, 10.25, 12, 13.25, 15.25, 17.25, 19.25, 21.25, 23.25
